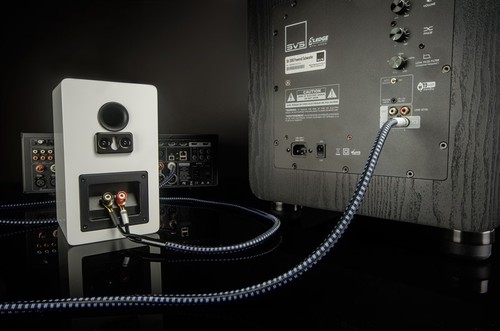

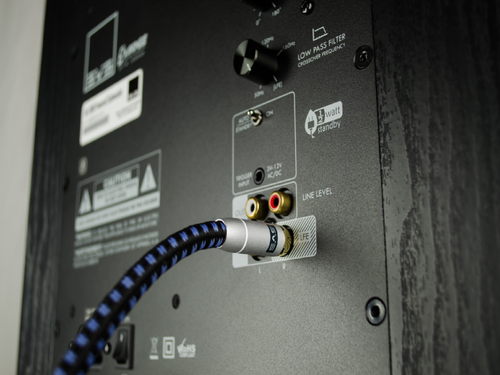

SVS Soundpath RCA Audio Interconnect Cable - 5Meter (Unit)

Cable – Materials of Construction: | All new premium cotton braided jacket – attractive, durable, outermost boundary of five-layer dielectric insulation system | High density 7.0mm PVC outside core dielectric – part of five-layer insulation system | 1.6mm HDPE inside core dielectric – part of five-layer insulation system, shields each unique conductor | PET Mylar shield layer – part of five-layer insulated system, shields and binds internal structure
מחיר: 360 ₪
משלוח חינם
משלוח איסוף עצמי : 0 ₪
אחריות: 5 שנים - יבואן רשמי
זמן אספקה: 7 ימי עסקים
למה לקוחות קונים אצלנו:
  • זמן אספקה: עד 7 ימי עסקים
  • אפשרות לעד 36 תשלומים ללא ריבית
  • שירות לקוחות מעולה
  • מוזמנים לדבר איתנו בטלפון או בוואטספ ! 050-4440109 מאי, מנהל מותג.
5 שנים - יבואן רשמי חודשי אחריות
משלוח חינם משלוח חינם
קניה בטוחה
שאל אותנו על מוצר זה

פרטים טכניים

פרטי המוצר
  • Cable - Materials of Construction:
  • All new premium cotton braided jacket – attractive, durable, outermost boundary of five-layer dielectric insulation system
  • High density 7.0mm PVC outside core dielectric – part of five-layer insulation system
  • 1.6mm HDPE inside core dielectric – part of five-layer insulation system, shields each unique conductor
  • PET Mylar shield layer – part of five-layer insulated system, shields and binds internal structure
  • Directional shield layer is a spiral braid of premium grade Aluminum foil and 56 strands of 99.99% OFC tinned copper Shielding – critical part of five-layer insulation system. Soldered to ground terminal at the source side helps reduce EMI and RF noise between electronics.
  • Total five-layer isolation system rejects electromagnetic (EM) and radio frequency (RF) interference.
  • The Dual balanced conductors are made from 14 strands of 99.99% OFC stranded copper conductors, and individually isolated in independent HDPE dielectric jackets - allow consistent signal flow, high signal purity, and minimize signal loss.
  • Nominal Cable Diameter: 7mm

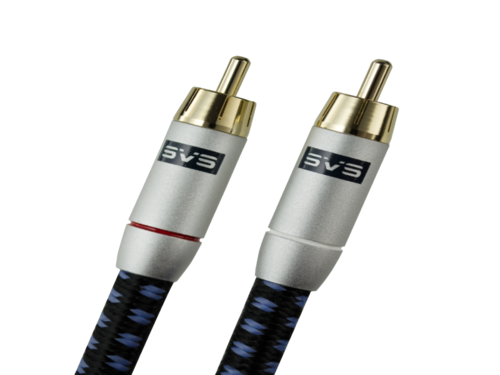

  • RCA Connector - Materials Of Construction:
  • Precision soldered with high grade lead-free solder – Durable and consistent electrical contacts with consistent signal flow.
  • 24K gold plated brass conductor pin – effective electrical contact and signal flow.
  • 24K gold plated brass split grounding body – tight fit with consistent electrical contact for stable grounding.
  • Precision machined and anodized aircraft grade aluminum shell with white and red marking bands – Stylish and durable body with a great feel and easy handling. Red and White marking bands for easy Left and Right designation.
  • Center Pin and Outer Ring: Gold-plated brass for optimum signal quality and integrity.
  • Electrical Properties:
  • Conductor DCR = 77 mΩ/meter
  • Shield DCR: 30 mΩ/meter
  • Nominal Impedance: 110Ω. Cable and RCA connectors are impedance-matched to minimize Voltage Standing Wave Ratio (VSWR) and Return Loss.
  • Nominal Capacitance: 39 pF/meter @ 1kHz
  • Rated Bandwidth: DC-5.0 MHz (3M cable) with ≤1.09 VSWR and ≥27dB Return Loss
